ECHOPANEL® EMPIRE 12mm



  • DESIGNER: WOVEN IMAGE
  • CATEGORY: WALL PANELS 12MM, ACOUSTIC SOLUTIONS
  • COMPOSITION: 100% PET (60% RECYCLED)
  • WEIGHT: 7.1KG PER PANEL
  • DIMENSIONS: 2750MM (+/-2MM) X 1100MM (+/-2MM)
  • THICKNESS: 12MM (+/-7%)
  • SOUND ABSORPTION:
    • NRC VALUE: 0.45 – DIRECT FIX
    • SAA: 0.43 – DIRECT FIX
    • AW: 0.30 (MH) – DIRECT FIX
  • SOUND ABSORPTION CLASS: D – DIRECT FIX
  • LIGHTFASTNESS: ISO 105 – B02 – 1994 RATING: 6 – 7
  • FIRE TEST:
    • ISO 9705: GROUP 1
    • GB 8624 B1
    • BS EN 13501.1: CLASSIFICATION B – S1, D0
    • AS 1530.3

Description

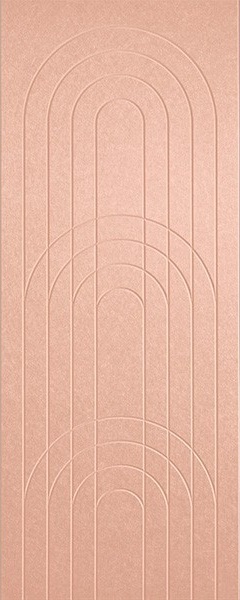

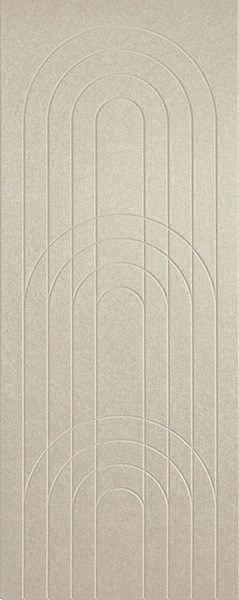

Woven Image have introduced Empire, an elegant precision-cut acoustic wall panel.
Empire is the latest design to join the precision cut collection of EchoPanel® products- Latitude, Longitude and Meridian.
• Inspired by arches and vertical linework, Empire is designed with curved groove cuts into the face and unique bevel edge for ease of install with linear groove cuts Longitude offers textual elements to flat surfaces and delivers acoustic performance and environmental properties to commercial spaces.
• Panel Dimensions:2750 mm X 1100mm X 12mm
• Empire precision cut design made from EchoPanel® 12mm, available in 33 colors
• Ideal for walls, ceilings, workstations and space-dividing applications
• Durable, lightweight, pinnable and easy to cut
• Reduce and control the acoustics in your workplace.

Environmental Thinking
EchoPanel® 12mm is made from 100% PET (Polyethylene Terephthalate) which, depending on colour contains up to 60% post-consumer PET from single use bottles that would otherwise have ended up in landfills or our oceans.
To date, over 230 million plastic bottles have been repurposed to produce EchoPanel products.
Empire demonstrates ongoing commitment to environmental performance and sustainable interiors. Its product achieves excellent environmental credentials, including Global GreenTag (GreenRate Level A), with the use of post-consumer and post-industrial waste streams and low VOC emissions. They are RED List Free and have published ingredient transparency with Declare, compliant with LEED v4.1 Building Product Disclosure and Optimisation credit requirements.
Flexible Design
Empire is the latest design to join the precision cut collection of EchoPanel® products, a finished surface with elegant precision-cut in itself and also a combined product with Longitude offers subtle textures and sustainable design.
Cost/Savings
Empire is a finished surface with elegant precision-cut in itself therefore reduces costs in labour and materials in many applications, including workstations and wall panelling. Compared to other wall finishes. Empire is an extremely price competitive solution.
Non Hazardous Materials
With regards to many furniture assemblies, substrates containing formaldehyde are still being actively used. These materials emit dangerous off gasses over a period of years.
EchoPanel® only emits a total VOC emission rate of < 0.02mg/m2/hr (over 7 days).. when used as a vertical screen divider in conjunction with a formaldehyde-free desk system it is a solution to a safe working environment and will contribute towards a GECA or EcoSpecifier certified workstation.
Size/Weight Ratio/Installation
At a weight of 2400 grams per square metre (12mm thick panel), Empire made from EchoPanel® 12mm is about one third the weight of MDF or plasterboard in equivalent sizes. It is a face finished product, pin-able, slim and can be used as double sided or single sided panel, giving it the desirable benefits of fitting into slim-line framing systems and requiring less bulk in coping with its light weight.
Empire is light weight, easy to handle, adhere to install.
It is ideal for high floor to ceiling installations.
Applications
Empire is designed for floor to ceiling wall and panel applications for sustainable interiors used in:
• Commercial offices • Hotels • Restaurants • Retail • Education • Apartments • Residential • Cinemas, theaters, auditoriums.
Empire is ideal as:
• An added acoustic floor to ceiling wall covering.
• A panel application.
Empire is light weight, easy to handle, adhere to install.
It is ideal for high floor to ceiling installations.
Performance
• Acoustics: Empire has been independently tested, in accordance with AS ISO 354 – 2006 and received an NRC (noise reduction co-efficient) result of 0.75 (with a 50mm air gap), 0.60 (with a 20mm air gap) and 0.45 (with no air gap).
It also achieves outstanding commercial performance results against Australian and International standards.
• Fire: Empire achieves a number of international fire standards for a number of applications, including the ISO 9705 GROUP 1 and BS EN 13501.1: Classification B-s1, d0, GB8624 B1 and AS 1530.3.
