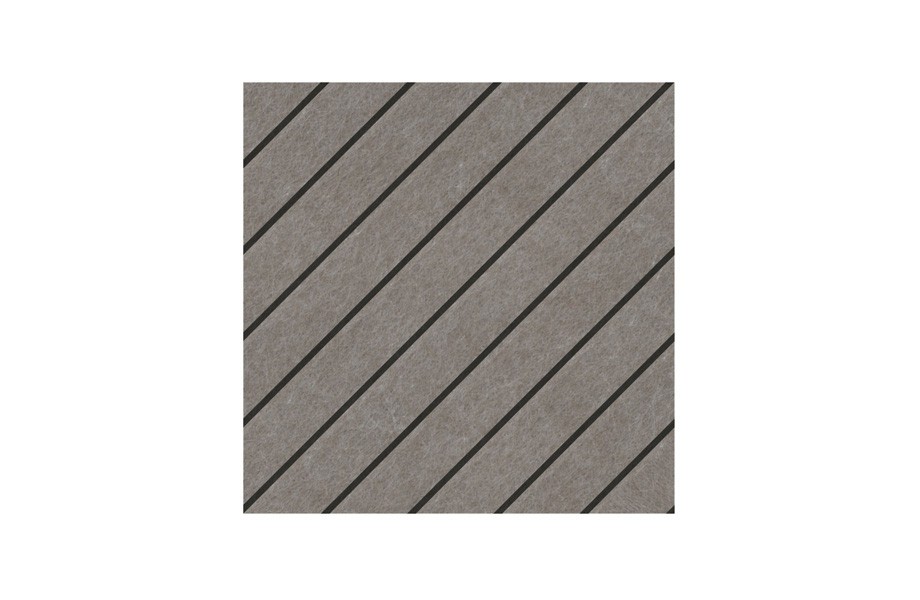

GROOVE TILE 45



      • DESIGNER: WOVEN IMAGE
      • CATEGORY: TILES, ACOUSTIC SOLUTIONS, ECHOPANEL 12MM
      • BOX OF: 10
      • COMPOSITION: 100% PET (60% RECYCLED)
      • WEIGHT: APPROX. 8.4KG PER BOX
      • DIMENSIONS: 550MM X 550MM (+/-2MM)
      • THICKNESS: 12MM (+/-7%)
      • SOUND ABSORPTION: ECHOPANEL 12MM ACHIEVES AS ISO 354 -2006
        • NRC VALUE: 0.45 (NO AIR GAP)
      • LIGHTFASTNESS: ISO 105-B02 – 1994 RATING: 6-7
      • FIRE TEST: ECHOPANEL 12MM ACHIEVES
        • ISO 9705: GROUP 1
        • AS 1530.3GB 8624 B1
        • BS EN 13501.1: CLASSIFICATION B-S1, D0
      • SUSTAINABILITY: ECHOPANEL® ACHIEVES GREENTAG CERTIFICATION







Description

• Groove 45 is a design of the Groove Tile Collection of precision groove cut designs in acoustic tile made from EchoPanel®.
• Groove 45 is designed with a 45-degree groove cut design into the face and delivers acoustic performance and environmental properties to commercial spaces.
• Groove 45 – BOX OF 10 TILES. DIMENSIONS: 550 X 550MM.
Available in 15 inspirational colourways, Groove 45 a lightweight and durable product, made from 60% recycled plastic bottles with outstanding acoustic qualities.

Acoustic tiles
Environmentally conscious
Most tiles in the collection are made from Echopanel® are made from Echopanel®, which achieves Global GreenTag™ certication (Green Rate: Level A).
Echopanel® is made using 60% post-consumer PET from single-use bottles that would otherwise end up in landfill or our oceans.
Impressively, in 2018/19, Woven Image diverted in excess of 624 tonnes of PET plastic from landfill. This equates to over 31 million waste bottles.
To date, over 230 million 600ml PET bottles have been repurposed to produce Echopanel® products.
Design freedom with acoustic performance
Decorative acoustic function with a quality design.
Groove 45 & Groove 90 are having the same color palette and available in 15 inspirational colourway. They offer mix and match design concept that can combine colors and patterns to the superb effect that reflect unique style in a space with quality design.
Groove 45 & Groove 90 are easy to install and enable the redefinition and reconfiguration of interior spaces and also create coordinating patterns with similar colors and different scales.
The portfolio boasts an extensive solid colour palette, precision cut and chamfered edge, providing an endless stream of design configurations.
Commercial Interior Applications
Whether you’re looking for floor to ceiling coverage or to create smaller design features, acoustic tiles are a stylish way to control noise in interior spaces including:
Open-plan offices, meeting rooms and collaborative workspace
Cafes and restaurants
Lobby’s and public spaces
Classrooms and music rooms.
Easy installation
Our acoustic tiles are lightweight , pinnable and easy to install. Design pattern match without the need for trimming. Tiles are either mounted using adhesive or, with our 3D tile range, installed using a sophisticated clip system.
Performance
• Acoustics: Groove Tile collection has been tested to AS ISO 354-2006 and received an NRC (noise reduction co-efficient) result of 0.45 (with no air gap)
• Fire: Groove tile collection has been tested to the Fire Test ISO 9705: Group 1, AS 1530.3, GB 8624 B1 and BS EN 13501.1: Classification B-s1, d0
